Wiring a New Build: Key Considerations for Homeowners

Why electrical planning belongs at the drawing stage

The most expensive electrical mistake in a new build is not a faulty cable — it is a decision made too late. Once plasterboard goes up and floors are laid, moving a socket or adding a circuit means chasing walls, lifting boards and undoing finished work. By contrast, a conversation with your electrician before the first fix can save thousands and give you a home that genuinely works for how you live.

The order of events matters. Your electrician needs to be involved alongside your builder, joiner and kitchen designer, ideally as soon as the structural drawings are ready. At that point, cable routes can be agreed, joists notched or drilled correctly, and the consumer unit sited where it can be accessed, tested and, if needed, expanded.

Getting the socket layout right

Think in terms of how many appliances will be plugged in at once, not how many sockets a room "usually" has. A kitchen is the classic pressure point: kettle, toaster, coffee machine, air fryer, microwave drawer, dishwasher and washing machine can easily demand eight to ten socket outlets between them.

Aim for sockets 150mm above the worktop in kitchens and utility rooms, clear of the splashback and the tile line you plan to use.
Elsewhere, 450mm to the centre from floor level is the accessible height used in new builds, and it suits most furniture layouts.
Allow for bedsides, desks, TV walls, vacuum charging points, and the hallway or landing socket nobody ever installs but everybody wants.
Consider a few USB-C charging outlets in bedrooms and kitchens — they reduce plug clutter and adapters.

A 32A ring final circuit in 2.5mm² twin and earth is still the backbone of most homes, but radial circuits in 4mm² or dedicated 16A/20A radials can be a better fit for heavy-use areas. Ask your electrician which suits your room-by-room load rather than accepting a default.

Lighting, controls and safety circuits

Lighting is where small choices make the biggest daily difference. Decide early whether you want pendant points, recessed downlights, or a mix, and where dimming is genuinely useful. Make sure dimmer switches are compatible with the LED lamps you intend to fit — mismatched dimmers cause flicker, buzz and premature failure.

Two-way and multi-way switching on landings and stairwells is inexpensive at first fix and awkward afterwards. So is the wiring for a mains-powered, interlinked smoke and heat alarm system: a heat alarm in the kitchen, smoke alarms in circulation spaces, and a carbon monoxide alarm where solid fuel or a gas boiler is present. Interlinked alarms mean that if one sounds, they all do — a detail worth getting right from the outset.

Data, media and smart home wiring

Whatever the wireless marketing suggests, a wired backbone still performs better for anything that stays put. Televisions, games consoles, desktop computers, access points and home offices all benefit from a fixed connection.

Cat 6 or Cat 6a cable to a central point gives you reliable gigabit-capable connectivity now and headroom later.
Run at least two data points to the main TV position, one to each study or desk, and one to a ceiling spot for a wireless access point.
Keep power and data cables separated where possible, and cross them at right angles if they must meet — this reduces interference.
Install conduit or draw cords to loft, garage and outbuildings so future cable can be pulled without damage.

Capacity for renewable and low-carbon technology

This is the area most often under-provided. Even if you are not fitting solar panels or an electric vehicle charger today, the cables and space should be there for tomorrow.

Ask your electrician to plan a consumer unit with spare ways and a clear labelling schedule, protected by RCBOs and a surge protection device. Then allow for:

A dedicated circuit for a 7.4kW (32A) home charge point, with the supply capacity checked and, if needed, the network operator notified.

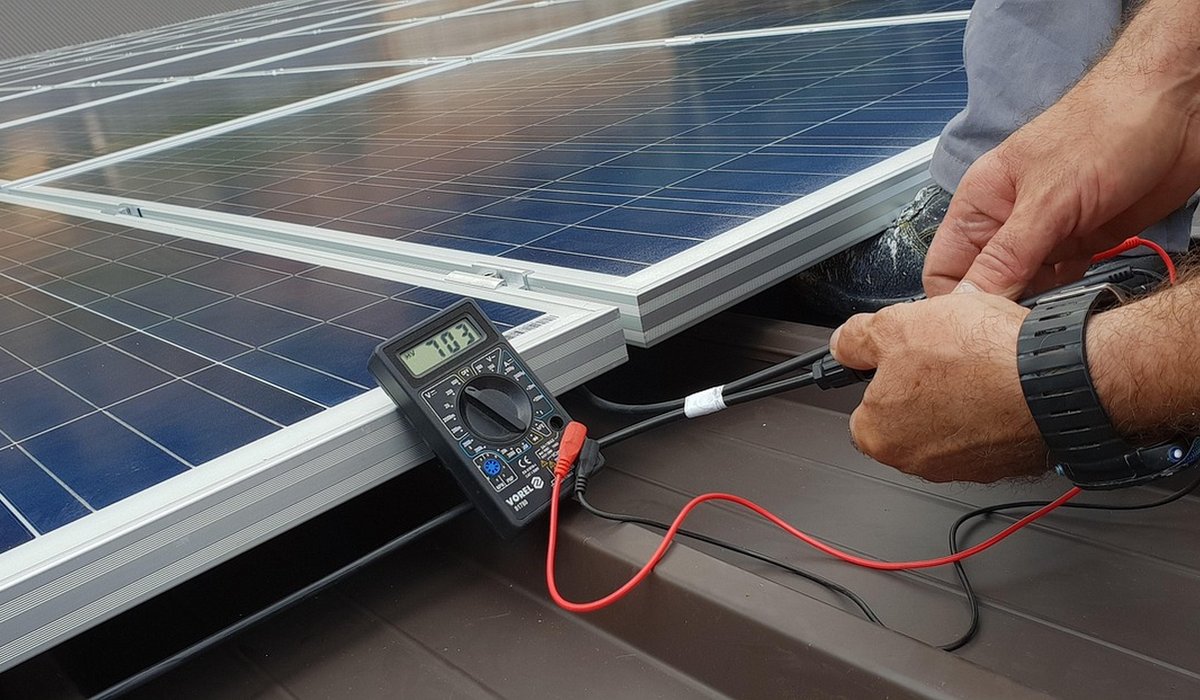

A route and isolator for a solar PV inverter, plus a generation meter position.
Provision for a battery storage system near the consumer unit, with ventilation and clearance in mind.
A suitably sized supply for a heat pump, which typically needs its own circuit and outdoor isolator.

If your incoming supply is a 100A single-phase service, that is usually ample — but an electrician should confirm the main fuse rating and the adequacy of the earthing and bonding arrangements before you commit.

Compliance, testing and snagging

Electrical work in a new dwelling is notifiable under Part P of the Building Regulations in England and Wales, and must comply with BS 7671, the IET Wiring Regulations. Use an electrician registered with a competent person scheme so that the work is certified and self-notified, or arrange Building Control inspection where required.

Before you sign anything off, ask for the Electrical Installation Certificate, the schedule of test results, and confirmation of the notification. Then walk the property room by room with the electrician, testing every socket, switch, dimmer and data point. Snagging is far easier to resolve while the site is still active and the trades are on hand than six months after you move in.

Plan it early, size it generously, and document it properly — a well-designed electrical installation is one of the quietest, longest-lasting investments you will make in a new home.
